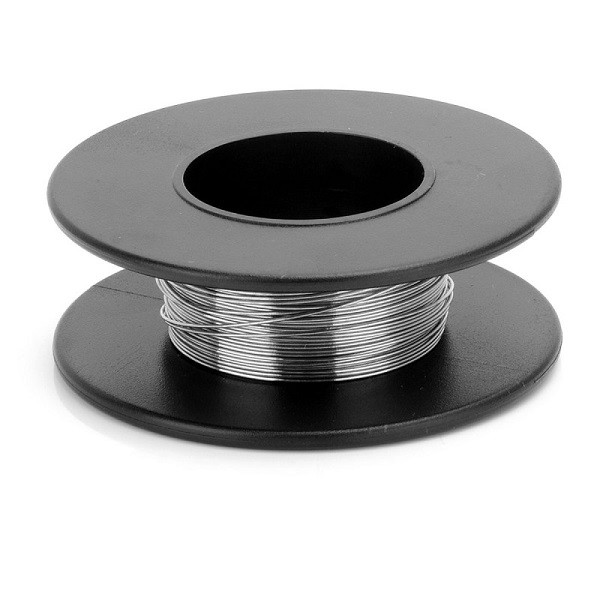

Super Elastic Niti Nitinol Wire 1mm 2mm 3mm

  • Super Elastic Niti Nitinol Wire 1mm 2mm 3mm
Lugar de origen China
Nombre de la marca csty
Certificación ISO9001
Número de modelo csty
Cantidad de orden mínima 1kg
Precio USD99-560 per kg
Detalles de empaquetado caso de madera de la exportación
Tiempo de entrega 7 días del trabajo
Condiciones de pago L/C, T/T
Capacidad de la fuente 5ton por mes

Éntreme en contacto con gratis las muestras y los vales.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
categoría memoria de la forma superficie polaco/negro
el usar pesca/de cristal/médico/industria material nitinol
Ni (minuto) 54.5-57% Paquete Paquete de las cajas de madera
Alta luz

Super Elastic Nitinol Wire

,

2mm Nitinol Wire

,

Fishing Super Elastic Wire
Puede marcar los productos que necesita y comunicarse con nosotros en el tablero de mensajes.
Diameter Tolerances
4.0~2.0mm ±0.02mm
2.0~1.0mm ±0.015mm
1.0~0.35mm ±0.01mm
0.35~0.26mm ±0.007mm
0.26~0.15mm ±0.005mm
0.15~0.08mm ± 0.004mm
Deja un mensaje
Diameter Tolerances
Descripción de producto

super elastic niti nitinol wire 1mm 2mm 3mm



Superelastic Nitinol (NiTi) wire is a type of wire made from an alloy of nickel and titanium. It is called "superelastic" because it has the unique property of being able to return to its original shape even after being severely deformed. This property is also known as shape memory.

Superelastic NiTi wire is commonly used in a variety of applications, including in the medical field for dental braces, orthodontic wires, and stents. It is also used in the aerospace industry for its lightweight and high strength properties.

Superelastic NiTi wire is manufactured by heating the wire to a specific temperature and then cooling it rapidly to create the desired shape. When the wire is deformed, it can be heated again to return to its original shape.

This type of wire is highly versatile and can be used in many different applications due to its unique properties. It is also biocompatible, which makes it safe for use in medical devices that will come into contact with human tissue or fluids.



name Grade Transfermation temperature AF Form

Standard


Shape memory nitinol alloy Ti-Ni-01 20℃~40℃ wire, bar, plate, tube customer specified or industry standard
Ti-Ni-02 45℃~90℃
Superelastic nitinol alloy TiNi-SS -5℃~5℃
Low temperature superelastic nitinol alloy TN3 -5℃~-15℃
TNC -20℃~-30℃
Medical Nitinol alloy TiNi-SS 33+/-3℃ ASTM F2063
Narrow Hysteresis nitinol alloy Ti-Ni-Cu As-Ms≤ 5℃ wire, bar
Wide Hysteresis nitinol alloy Ti-Ni-Fe As-Ms≤150℃


Products Show



Super Elastic Niti Nitinol Wire 1mm 2mm 3mm 0





Nitinol wire is a type of shape memory alloy that is made from nickel and titanium. It has the unique ability to return to its original shape after being deformed when exposed to heat.

The sizes you mentioned - 1mm, 2mm, and 3mm - refer to the diameter of the nitinol wire. Nitinol wire is available in various sizes and can be used for a range of applications, including medical devices, robotics, and aerospace.

When selecting the size of nitinol wire, it's important to consider the specific requirements of your application, including the amount of force or load the wire will need to withstand and the space constraints of the application. Additionally, the thickness of the nitinol wire will affect its ability to change shape when exposed to heat, so it's important to choose a wire size that is appropriate for the intended use.



What is your quality assurance?

A. For chemical composition inspection, not only inspect the NiTi raw material, but also the semi finished products and finished products. Just to ensure 100% qualified products before shipping.
B. Strict Process controls per technological requirements. Each person monitors each process and record all data of production.
C. Strict Quality Tracing Mechanism.
How I trust you?
A. 13 years Alibaba Gold Supplier
B. Changsheng was established in 2006 and specializes in Nitinol expertise.
C. Free Sample before your batch order.
What is your price and delivery time?
A. Based on the best quality, we will offer our best prices.
B. We are a manufacturer, so we have a price advantage.

C. 1 day delivery time for ready stock samples, but not longer than 5 days for sample production.
